Uf Membranes
HMT Ultrafiltration membranes are designed to remove suspended solids, colloidal particles, bacteria, and high molecular weight contaminants from water. Utilizing advanced hollow fiber membrane technology, these UF membranes deliver consistent permeate quality and serve as an effective standalone filtration system or as pretreatment for reverse osmosis and membrane bioreactor applications.
The membranes operate at low transmembrane pressures, ensuring energy-efficient performance while minimizing fouling through automated backwashing and chemical cleaning protocols. Their durable construction and optimized fiber design provide long service life, reduced downtime, and stable filtration performance across varying water qualities.
HMT UF membranes are widely applied in drinking water treatment, wastewater tertiary treatment, industrial process water, RO pretreatment, and pharmaceutical and food industries. By choosing HMT, customers gain reliable filtration, lower operating costs, and dependable water quality supported by proven hollow fiber membrane expertise.
SYSTEM ARCHITECTURE
Hollowbrane Ultrafiltration (UF) systems represent the pinnacle of physical separation technology. Our plants utilize hollow-fiber membranes to provide an absolute barrier against suspended solids, colloids, bacteria, and viruses. These systems are specifically engineered as a robust pretreatment for Reverse Osmosis (RO) or as a stand-alone tertiary treatment for wastewater recycling.
MEMBRANE CHEMISTRY COMPARISON
We offer both PVDF and PES membrane configurations to ensure the system is perfectly matched to your raw water chemistry.
| Feature | PVDF Series (Premium) | PES Series (Standard) |
|---|---|---|
| Membrane Material | Polyvinylidene Fluoride | Polyethersulfone |
| Fiber Structure | High Mechanical Strength | High Hydrophilicity |
| Chemical Resistance | Extreme (Tolerates High Chlorine) | Standard (Sensitive to Oxidants) |
| Flow Direction | Outside-In (Anti-Clogging) | Inside-in (High Flux) |
| Primary Application | ETP Tertiary, High Turbidity Water | RO Pretreatment, Drinking Water |
| Service Life | 5 Years to above | 3 Years to above |
TECHNICAL SPECIFICATIONS
| Operational Parameter | Specification Details |
|---|---|
| Pore Size | 0.01 to 0.03 Micron |
| Feed Water Turbidity | < 50 NTU (Standard) / Up to 100 NTU (Peak) |
| Product Water Turbidity | ≤ 0.1 NTU |
| Silt Density Index (SDI) | < 3 (100% Guaranteed) |
| Trans-Membrane Pressure (TMP) | 0.2 bar – 1.5 bar |
| System Recovery | 90% – 95% |
| Bacteria / Virus Removal | 99.99% (4-Log to 6-Log Removal) |
| Operating pH Range | 3 – 9 (PES) / 2 – 10 (PVDF) |
SYSTEM FEATURES & AUTOMATION
- PLC/HMI Control: Fully automated backwash, forward flush, and CEB (Chemically Enhanced Backwash) cycles.
- Skid Construction: Industrial-grade SS 304 or Epoxy-coated Heavy Duty MS.
- Integrated Pre-Filtration: Includes 100-micron auto-backwash filters to protect membranes.
- Smart Sensors: Real-time monitoring of Pressure, Flow, and Permeate Quality.
- Modular Design: Easy expansion for future capacity increases.
KEY APPLICATIONS
- Pre-treatment to RO: Extends RO membrane life by 50% and reduces cleaning frequency.
- STP / ETP Tertiary Treatment: Direct reuse of treated wastewater for cooling towers and gardening.
- Process Water: Clarification of water for Food & Beverage and Pharmaceutical use.
- Drinking Water: Advanced disinfection without the use of excessive chemicals.

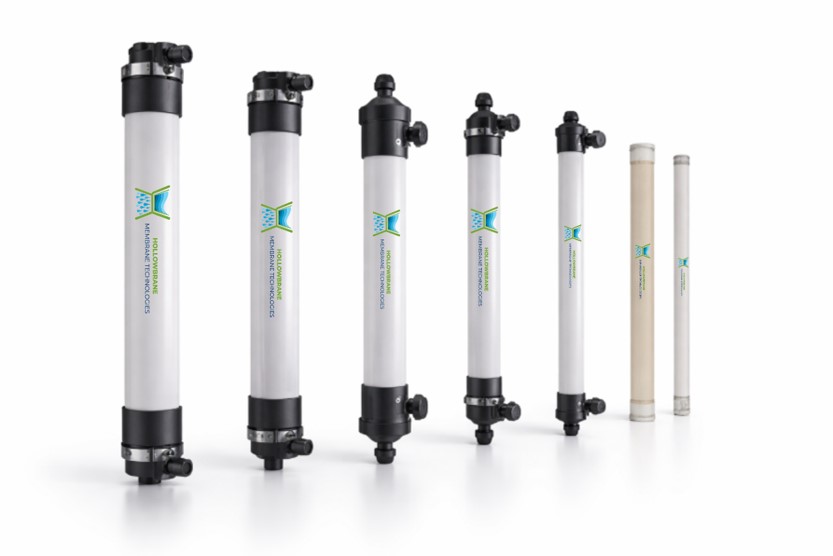

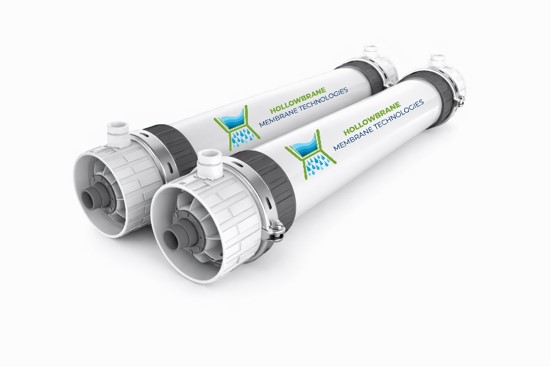

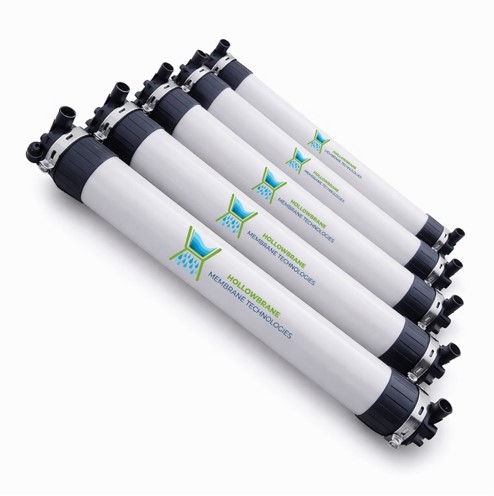

Our Products Images
