Parameter	Specification
Module	HOSUF MBR Series
Material	Reinforced PVDF
Nominal Pore Size (μm)	0.06 (Nominal Distribution 0.02 – 0.07)
Surface Properties	Non-ionic & Hydrophilic
Fiber Diameter (mm)	Inner / Outer = 0.9 / 2.0
Flow Path	Outside-In
Design Flux (LMH)	12 – 32

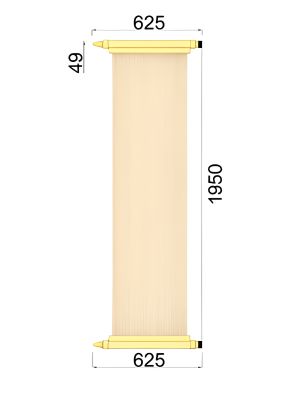

Area (m²)	Dimensions (mm) (A × B × C)
20m2b	625*45*1950

Parameter	Specification
Working Pressure Range (MPa)	0.02 – 0.05
Max Operating Temperature (°C)	45
Max Cleaning Temperature (°C)	20
Operating pH	5 – 9
Cleaning pH	2 – 10
Backwash Max. Pressure (MPa)	0.1

• 100% direct replacement MBR membrane
• High-quality manufacturing standards
• Cost-effective solution with shortened delivery/lead time of 3–6 weeks
• Up to 3–5 years lifespan with reliable and efficient performance
• Advanced Membrane Bio-Reactor for superior treatment performance
• High-quality permeate suitable for reuse

• BOD < 10 mg/L
• COD < 50 mg/L
• TSS < 5 mg/L
• 99% removal efficiency

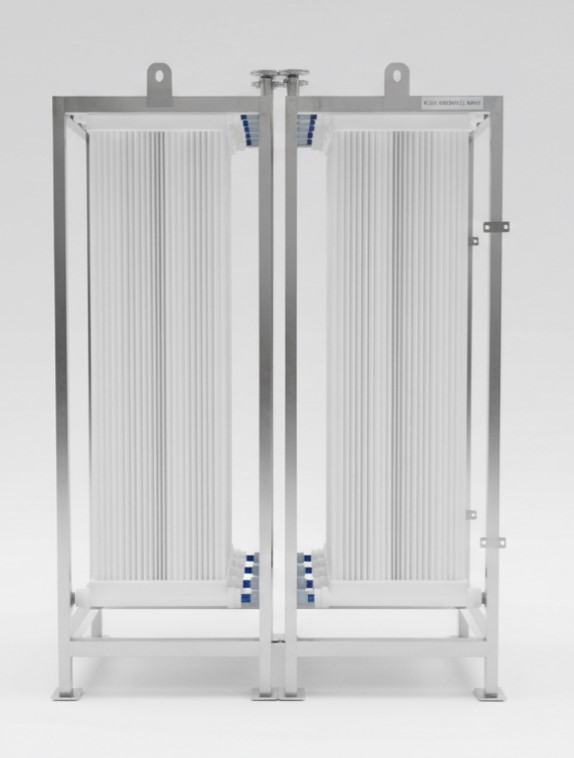

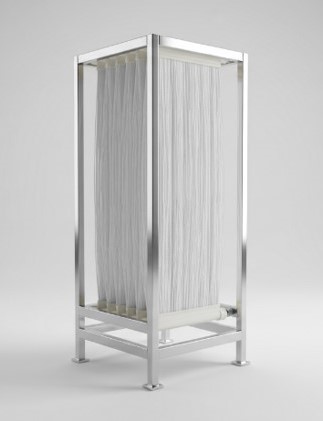

• MBR module for 20M2 boat design cassettes
• MOC: SS 316L, SS 316, and SS 304
• Diffusers: Coarse diffusers, pulse aerator, and coarse hole pipes
• Headers: Air and permeate
• Designed for seamless integration into existing MBR systems

Model	Area (m²)	Capacity (KLD)	Modules	Side A (mm)	Side B (mm)	Side C (mm)	Side D (mm)	Side E (mm)	CMD (mm)
HMTB	167	50	8	730	270	1870	1040	625	-
HMTB	250	75	13	730	335	1870	1040	625	-
HMTB	333	100	17	730	660	1870	1040	625	-
HMTB	367	110	18	730	985	1870	1040	625	-
HMTB	417	125	21	730	750	1870	1040	625	-
HMTB	433	150	22	730	1765	1870	1040	625	-
HMTB	583	175	29	1700	1279	1870	1040	625	-
