Parameter	Specification

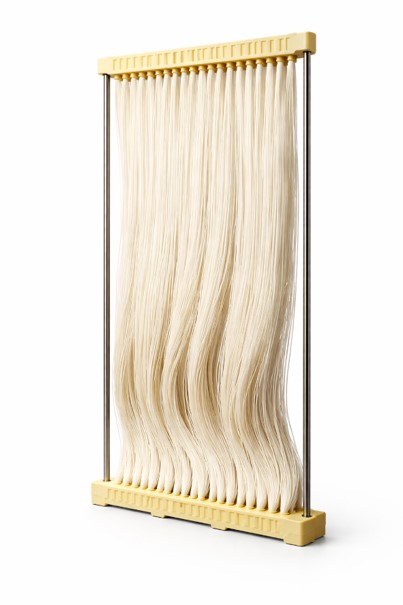

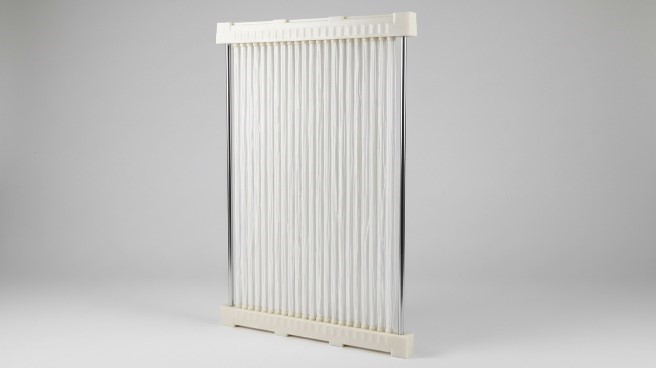

Module	HOSUF MBR Series
Material	Reinforced PVDF
Nominal Pore Size (μm)	0.06 (Nominal Distribution 0.02 – 0.07)
Surface Properties	Non-ionic & Hydrophilic
Fiber Diameter (mm)	Inner / Outer = 0.9 / 2.0
Flow Path	Outside-In
Design Flux (LMH)	12 – 32

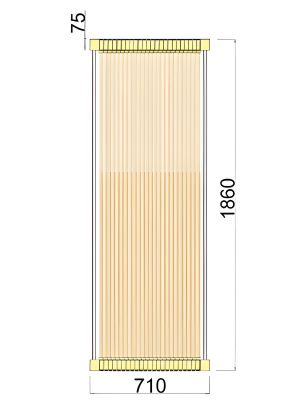

Area (m²)	Dimensions (mm) (A × B × C)
HMTC 15 m²	710*40*1860

Parameter	Specification
Working Pressure Range (MPa)	0.02 – 0.05
Max Operating Temperature (°C)	45
Max Cleaning Temperature (°C)	40
Operating pH	5 – 9
Cleaning pH	2 – 10
Backwash Max. Pressure (MPa)	0.1

• 100% direct replacement MBR membrane
• High-quality manufacturing standards
• Cost-effective solution with shortened delivery/lead time of 3–6 weeks
• Up to 3–5 years lifespan with reliable and efficient performance
• Advanced Membrane Bio-Reactor for superior treatment performance
• High-quality permeate suitable for reuse

• BOD < 10 mg/L
• COD < 50 mg/L
• TSS < 5 mg/L
• 99% removal efficiency

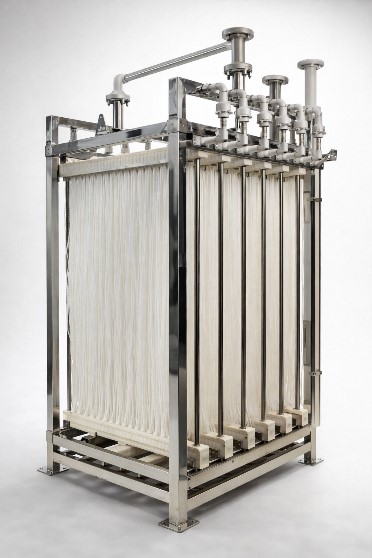

• MBR module for HMTC 15 m² cub design cassettes
• MOC: SS 316L, SS 316, and SS 304
• Diffusers: Coarse diffusers, pulse aerator, and coarse hole pipes
• Headers: Air and permeate
• Designed for seamless integration into existing MBR systems

Model	Area (m²)	Capacity (KLD)	Modules	Side A (mm)	Side B (mm)	Side C (mm)	Side D (mm)	Side E (mm)
HMTB 17	5	2	2	730	270	1415	1040	625
HMTB 33	10	3	3	730	335	1415	1040	625
HMTB 83	25	8	8	730	660	1415	1040	625
HMTB 133	40	13	13	730	985	1415	1040	625
HMTB 167	50	17	17	730	750	1415	1040	625
HMTB 250	75	25	25	730	1765	1415	1040	625
HMTB 333	100	34	34	1700	1279	1415	1040	625
