Parameter	Specification

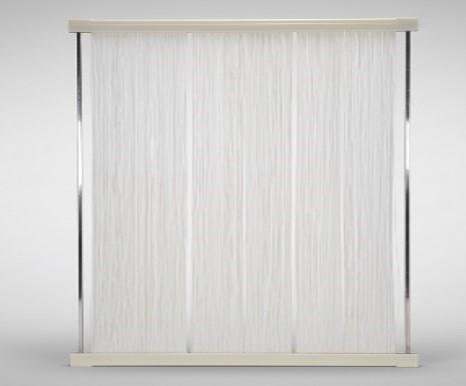

Module	HOSUF MBR Series
Material	Reinforced PVDF
Nominal Pore Size (μm)	0.06 (Nominal Distribution 0.02 – 0.07)
Surface Properties	Non-ionic & Hydrophilic
Fiber Diameter (mm)	Inner / Outer = 0.9 / 2.0
Flow Path	Outside-In
Design Flux (LMH)	12 – 32

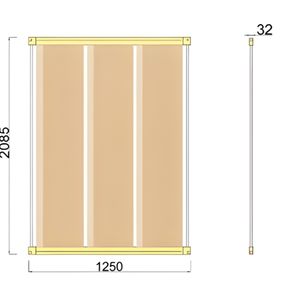

Area (m²)	Dimensions (mm) (A × B × C)
30m2b	1250*32*2085

Parameter	Specification
Working Pressure Range (MPa)	0.02 – 0.05
Max Operating Temperature (°C)	45
Max Cleaning Temperature (°C)	40
Operating pH	5 – 9
Cleaning pH	2 – 10
Backwash Max. Pressure(MPa)	0.1

• 100% direct replacement MBR membrane
• High-quality manufacturing standards
• Cost-effective solution with shortened delivery/lead time of 3–6 weeks
• Up to 3–5 years lifespan with reliable and efficient performance
• Advanced Membrane Bio-Reactor for superior treatment performance
• High-quality permeate suitable for reuse

• BOD < 10 mg/L
• COD < 50 mg/L
• TSS < 5 mg/L
• 99% removal efficiency

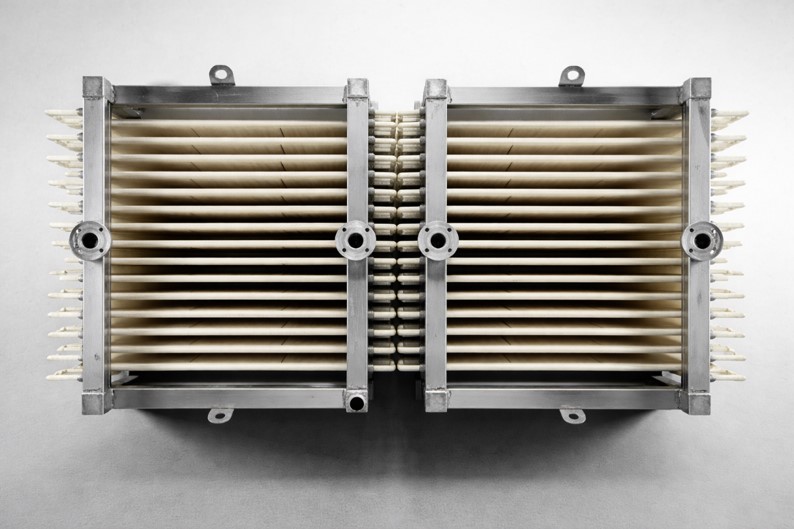

• MBR module for 30m2 boat design cassettes
• MOC: SS 316L, SS 316, and SS 304
• Diffusers: Coarse diffusers, pulse aerator, and coarse hole pipes
• Headers: Air and permeate
• Designed for seamless integration into existing MBR systems

Model	Area (m²)	Capacity (KLD)	Modules	Side A (mm)	Side B (mm)	Side C (mm)	Side D (mm)	Side E (mm)	CMD (mm)
HMTB – 30 m²	583	175	19	1250	1586	2915	2080	1250	-
HMTB – 30 m²	667	200	22	1250	1768	2915	2080	1250	-
HMTB – 30 m²	833	250	28	1250	2252	2915	2080	1250	-
HMTB – 30 m²	1667	350	40	1250	1620	2915	2080	1250	-
HMTB – 30 m²	1667	500	55	1250	2030	2915	2080	1250	-
HMTB – 30 m²	2166	650	72	1250	2980	2915	2080	1250	-
HMTB – 30 m²	2333	700	78	1250	3752	2915	2080	1250	-
